Raspberry Pi M.2 HAT Compact

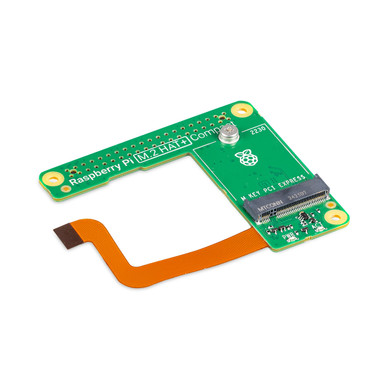

Raspberry Pi M.2 HAT Compact - SC1771 The Raspberry Pi M.2 HAT Compact is an alternative to the existing M.2 HAT , designed to fit inside the Official case for Raspberry Pi 5. It connects to the PCIe FPC connector on Raspberry Pi 5 via a “flex/rigid” FPC built into the HAT PCB. removing the need for a separate FPC cable.  Features 4 Gbits/s PCIe 2.0 interface provides fast (~450Mbytes/s) data transfer to and from NVMe SSD drives and other PCIe accessories. Conforms to the HAT specification.  Automatically detected by the latest Raspberry Pi software/firmware. Supplied with 3 pcs 8mm M2.5 nylon spacers and 6 pcs M2.5 nylon screws to enable the M.2 HAT to be fitted to a Raspberry Pi 5 before fitting it into the Raspberry Pi Case. Specifications Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)  Supports devices that use the M.2 M key edge connector  Supports form factors: M.2 HAT Compact: 2230 only Capable of supplying up to 3A to connected M.2 devices  Includes power and activity LEDs  Conforms to the Raspberry Pi HAT specification  Supplied with ribbon cable, 16mm stacking header (M.2 HAT only), threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral Resources Raspberry Pi M.2 HAT product brief Raspberry Pi M.2 HAT Standard assembly instructions Raspberry Pi M.2 HAT Compact assembly instructions Raspberry Pi M.2 HAT schematics
