Raspberry Pi Active Cooler

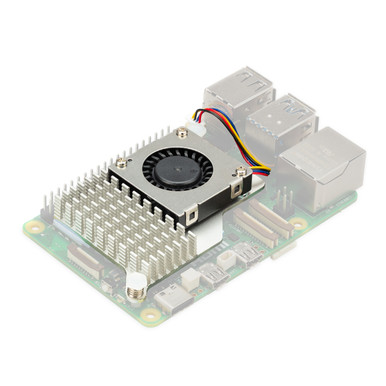

Raspberry Pi Active Cooler - SC1148The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads. Features Single-piece anodised aluminium heatsink Heatsink-mounted, temperature-controlled blower fan attached by three screws  Spring-loaded push pins for mounting onto Raspberry Pi 5  Pre-applied thermal pads for heat transfer Specifications Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5  Fan speed control: Pulse width modulation control with tachometer  Maximum airflow: 1.09 CFM  Maximum fan speed: 8000 RPM /- 15%  Product material: Anodised aluminium Resources Raspberry Pi Active Cooler product brief Raspberry Pi Active Cooler mechanical drawing
